Hay Rakes

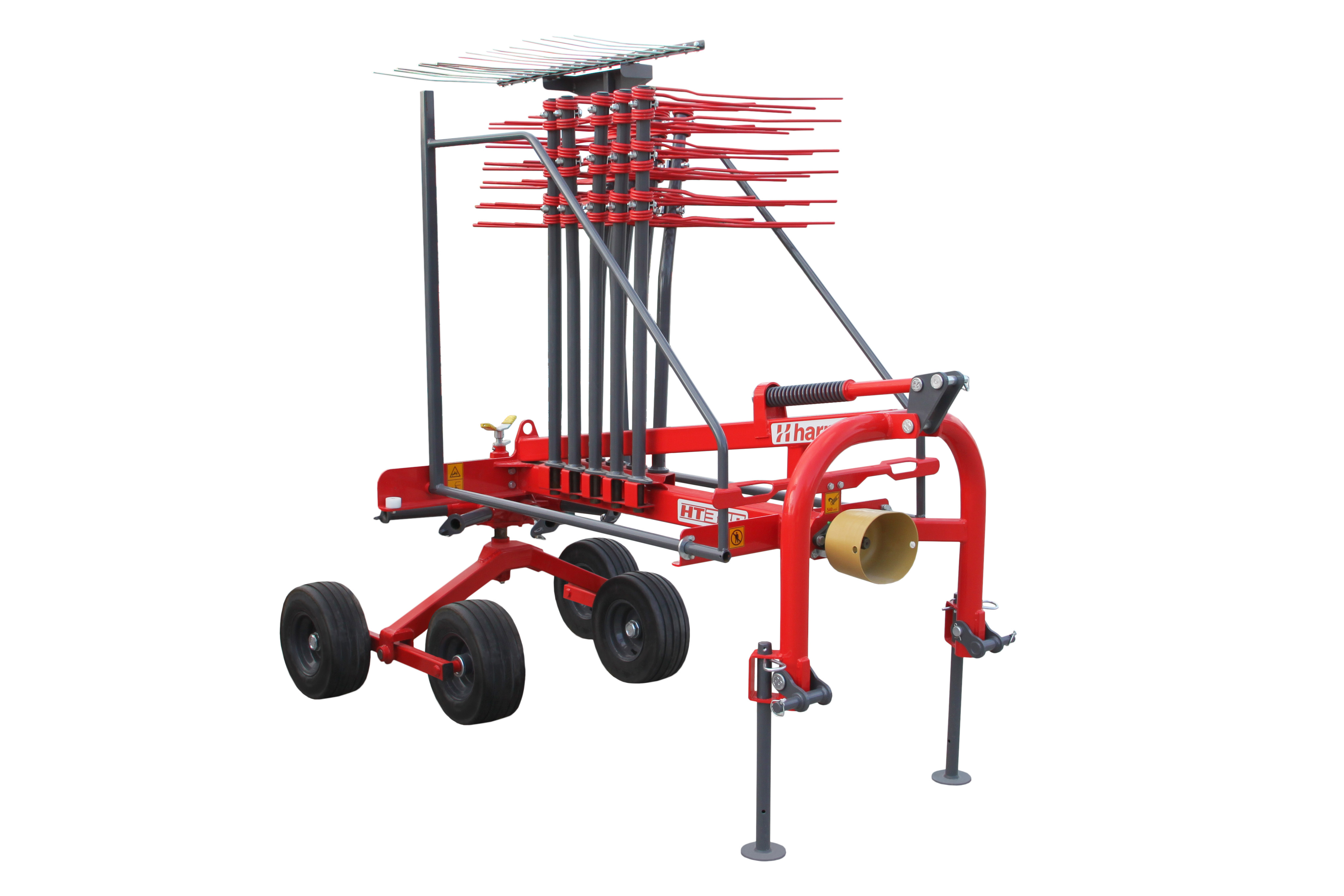

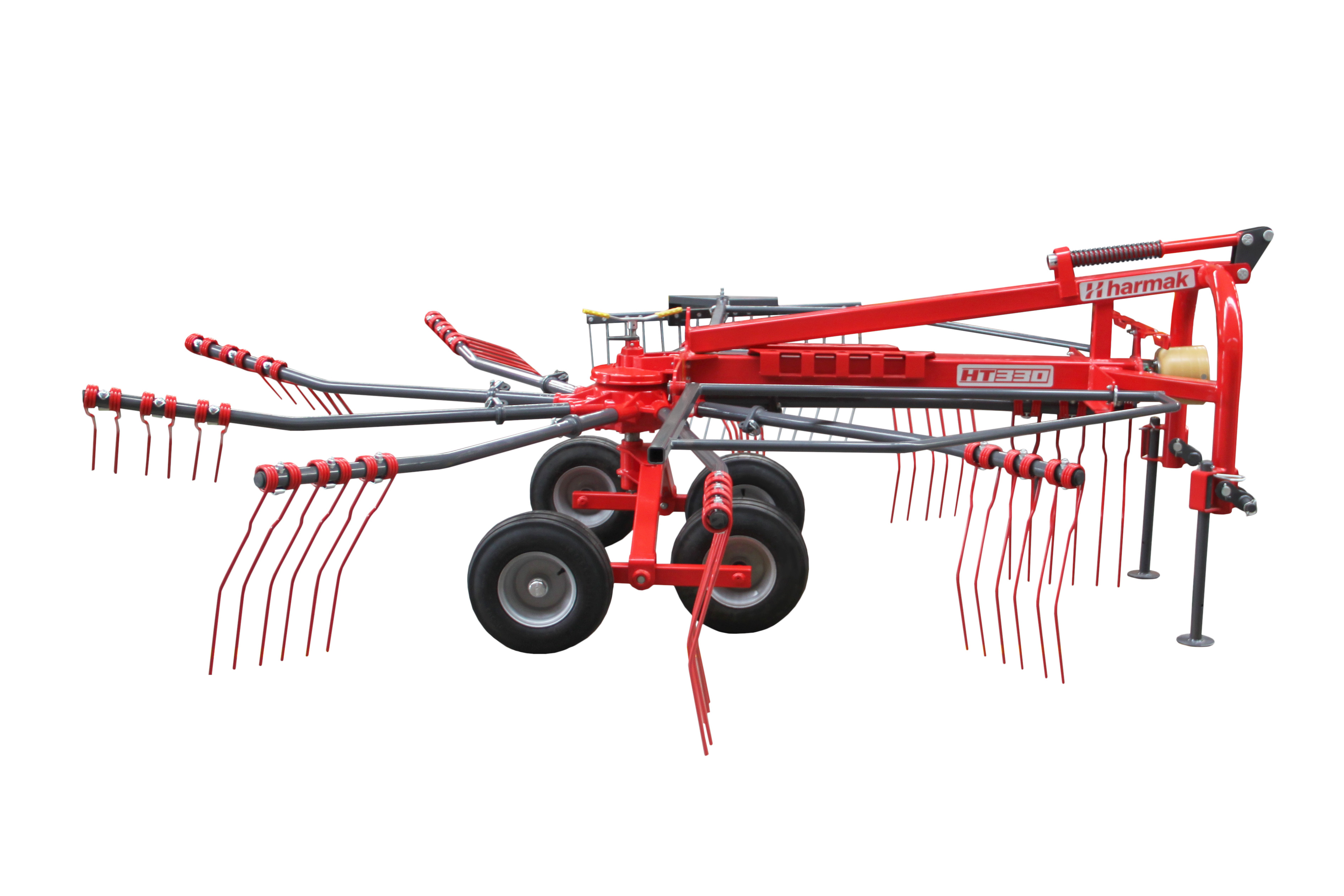

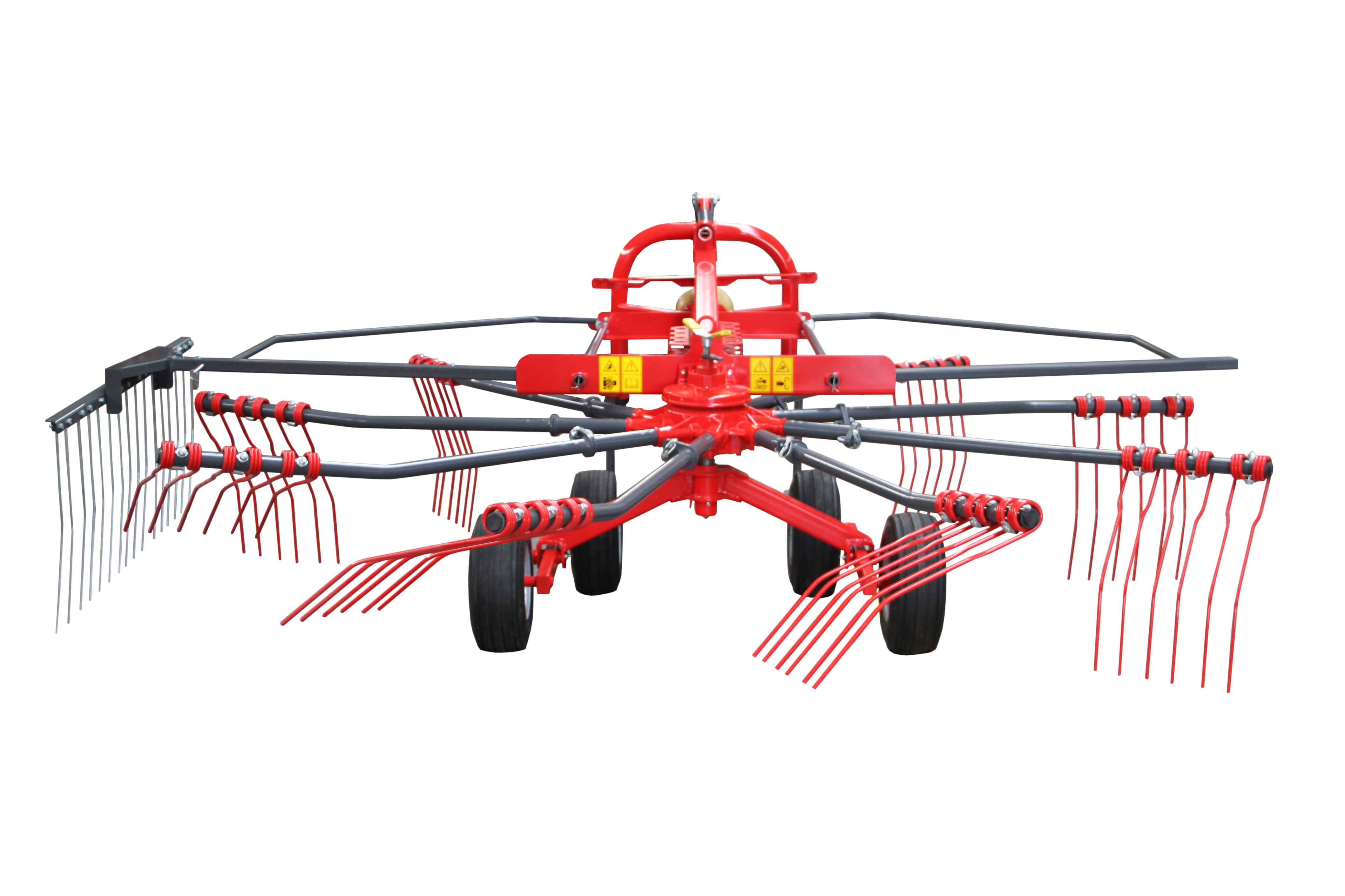

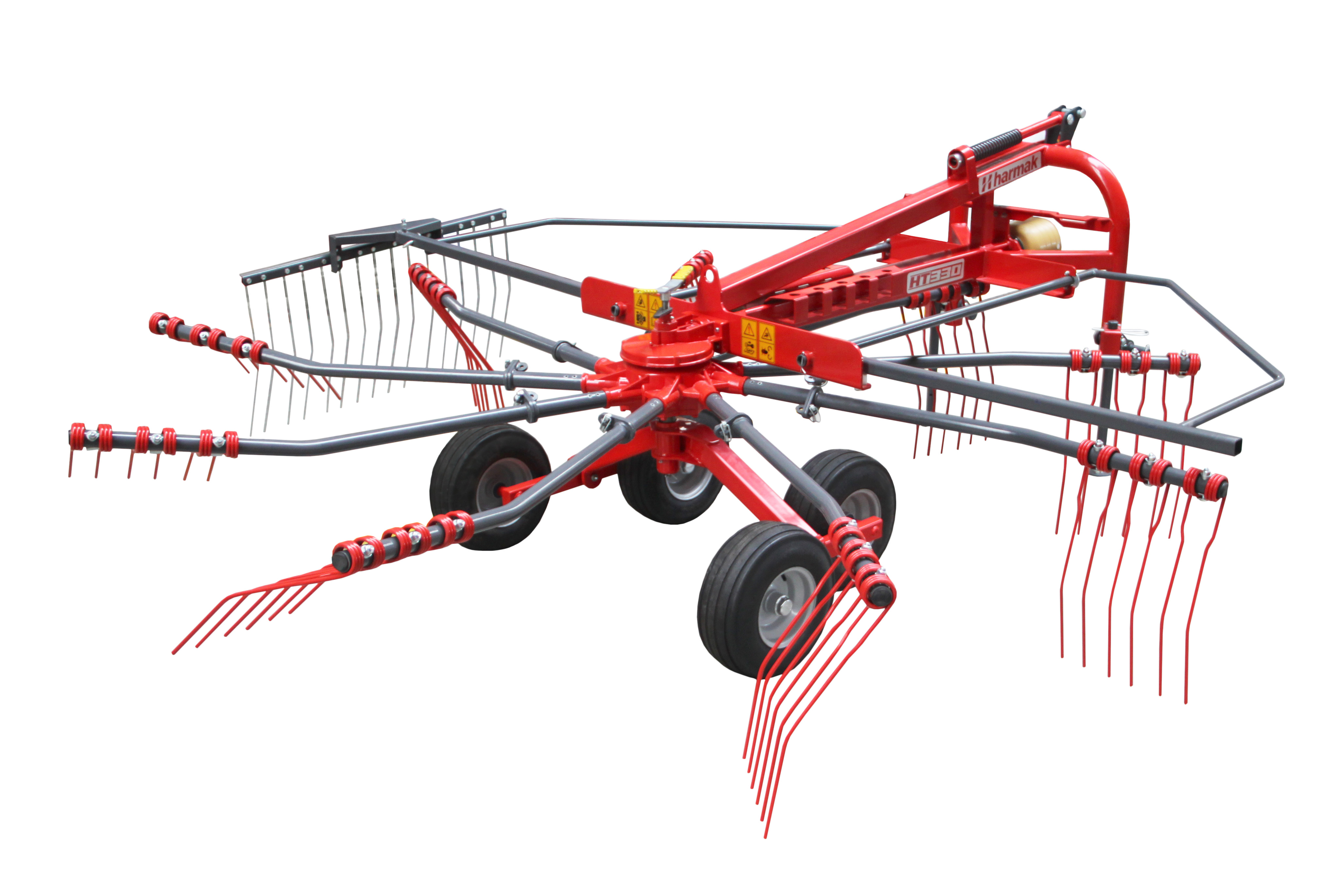

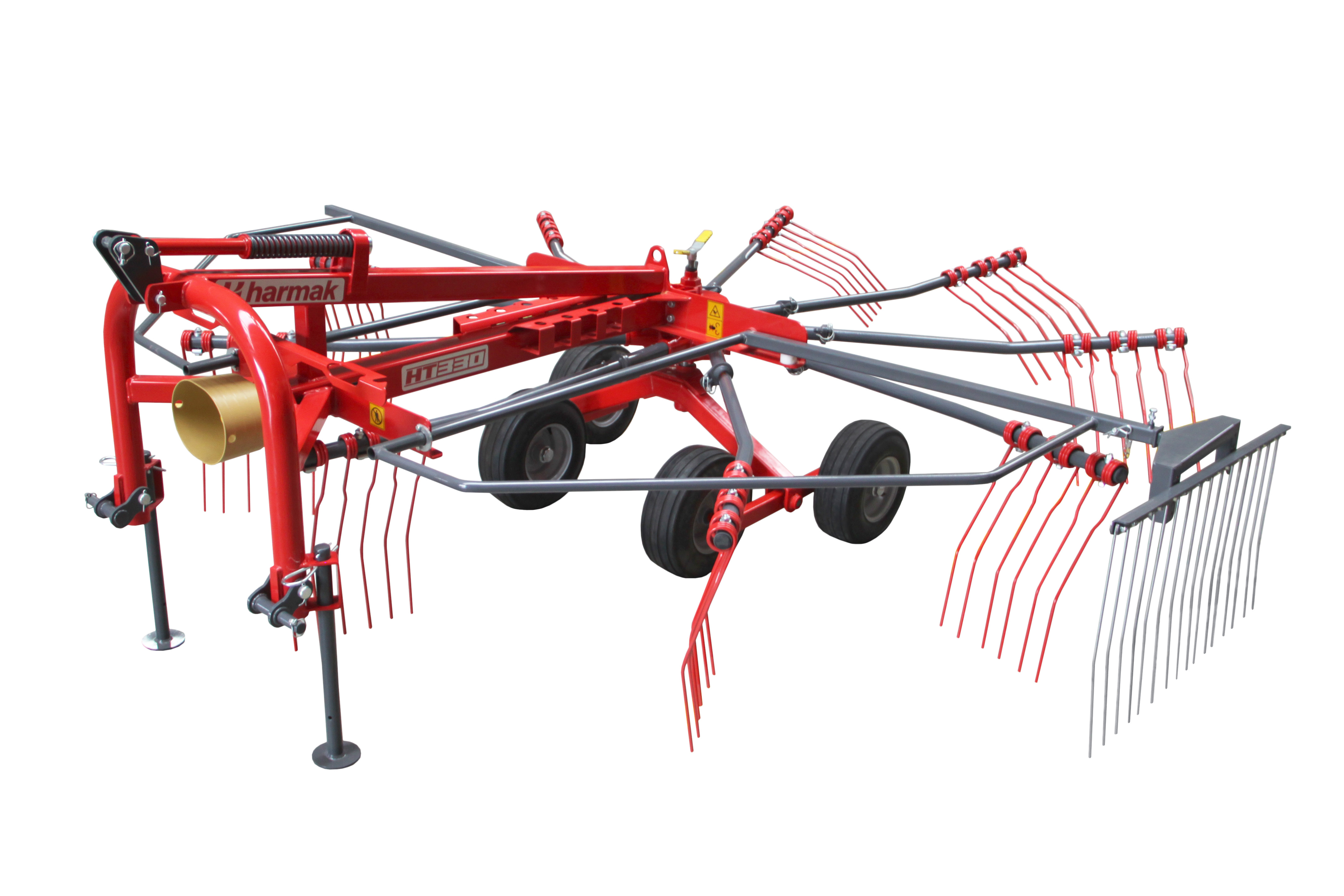

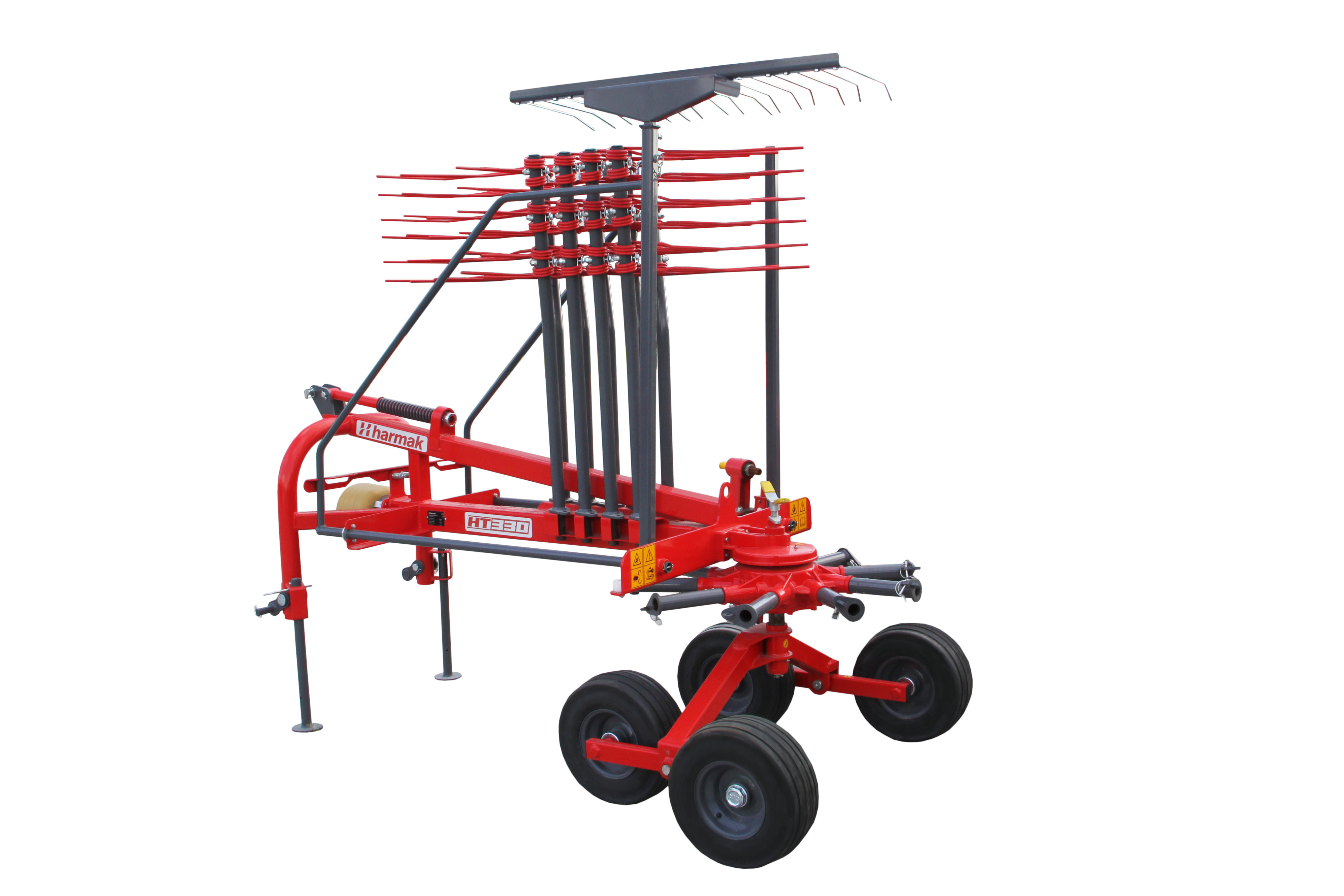

Single Rotary Hay Rakes
Photo Gallery
Technical Specifications
WEIGHT 450 kg
WIDTH 3,3 m
HEIGHT 2,19 m
LENGTH 2,55 m
TRANSPORT WIDHT 1,37 m
POWER 45-50 hp
PTO SPEED 540 rpm
NUMBERS OF ROTOR ARM 9
NUMBER OF SPRING ARM 3-4
NUMBER OF TIRES 4
TIRE SIZE 16/6.5-8
Featured Properties
EXCELLENT ADAPTATION TO TERRAINS
The wheels under the rotories provide perfect adaptation and excellent collection in even short heavy and wet grass in uneven and slopeterrain conditions.
EASY DISASSEMBLING OF ROTOR ARM
Just undo three bolts to disasseble rotor arm and rotor casing easy and guick.So that rotor and rotor arm maintenance can be effortless.
HEIGHT ADJUSTMENT OF ROTOR
Depending on corp and terrain, rotor heıght can adjust easy and comfy as well.
