Disc Mowers

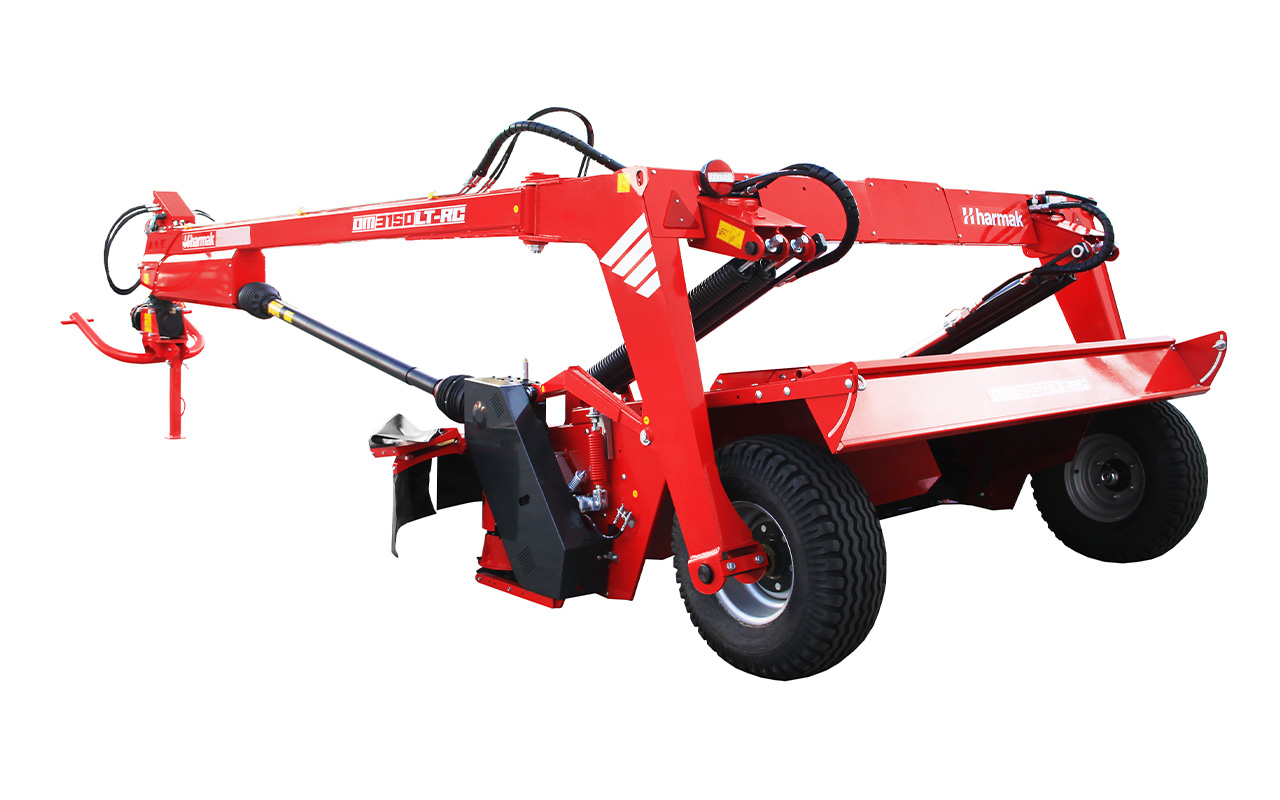

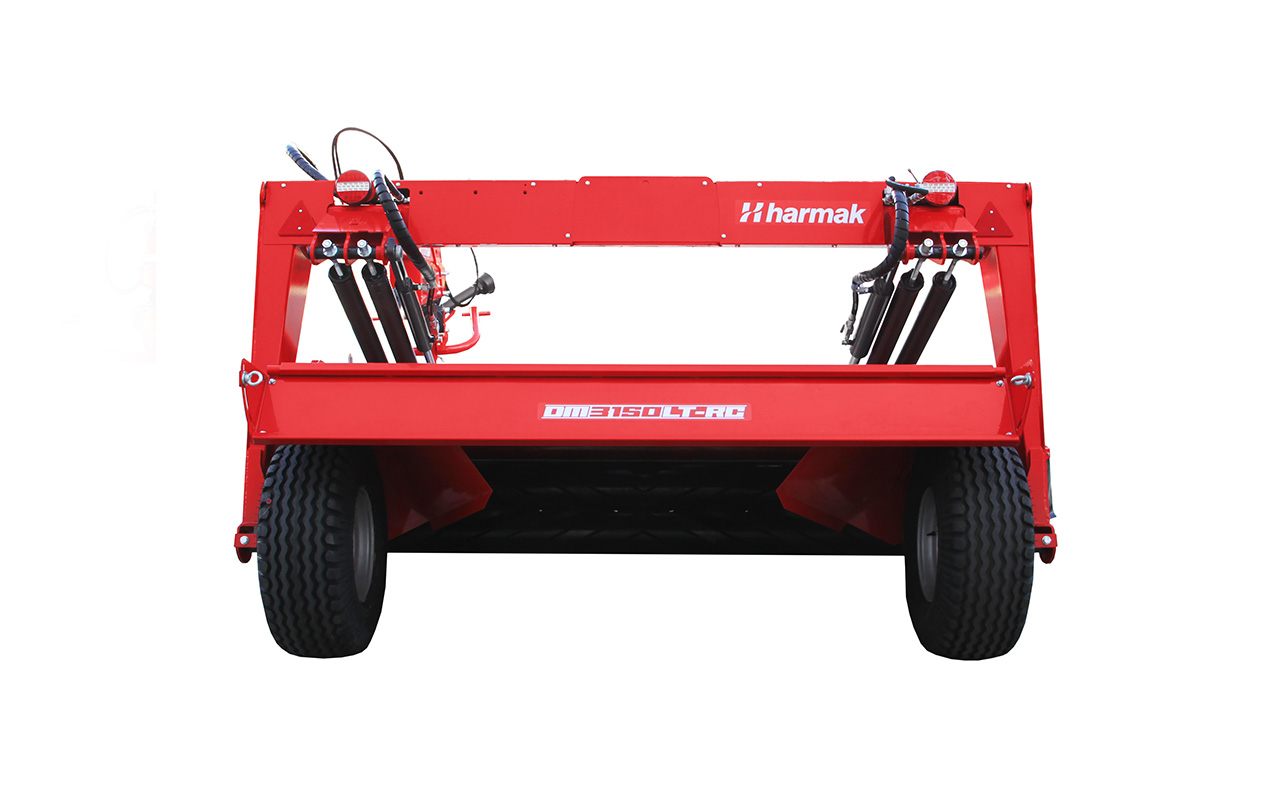

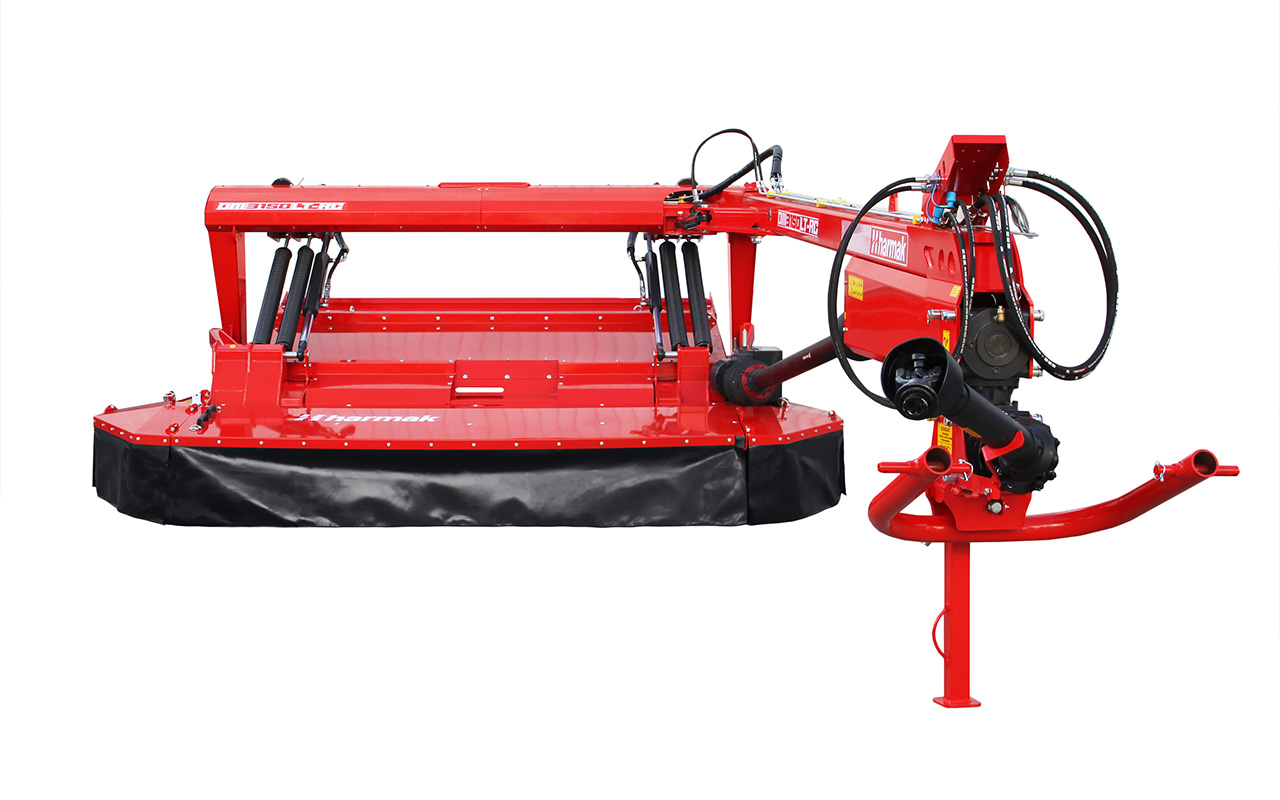

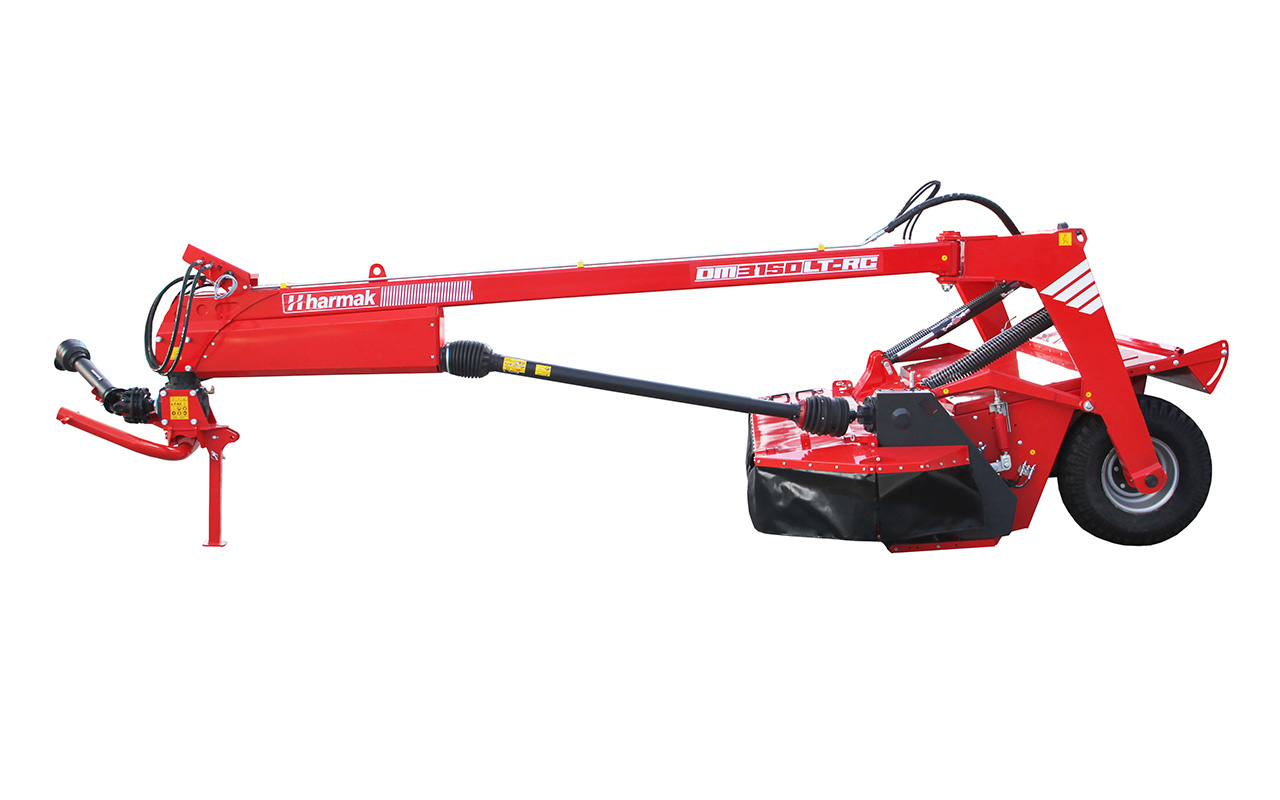

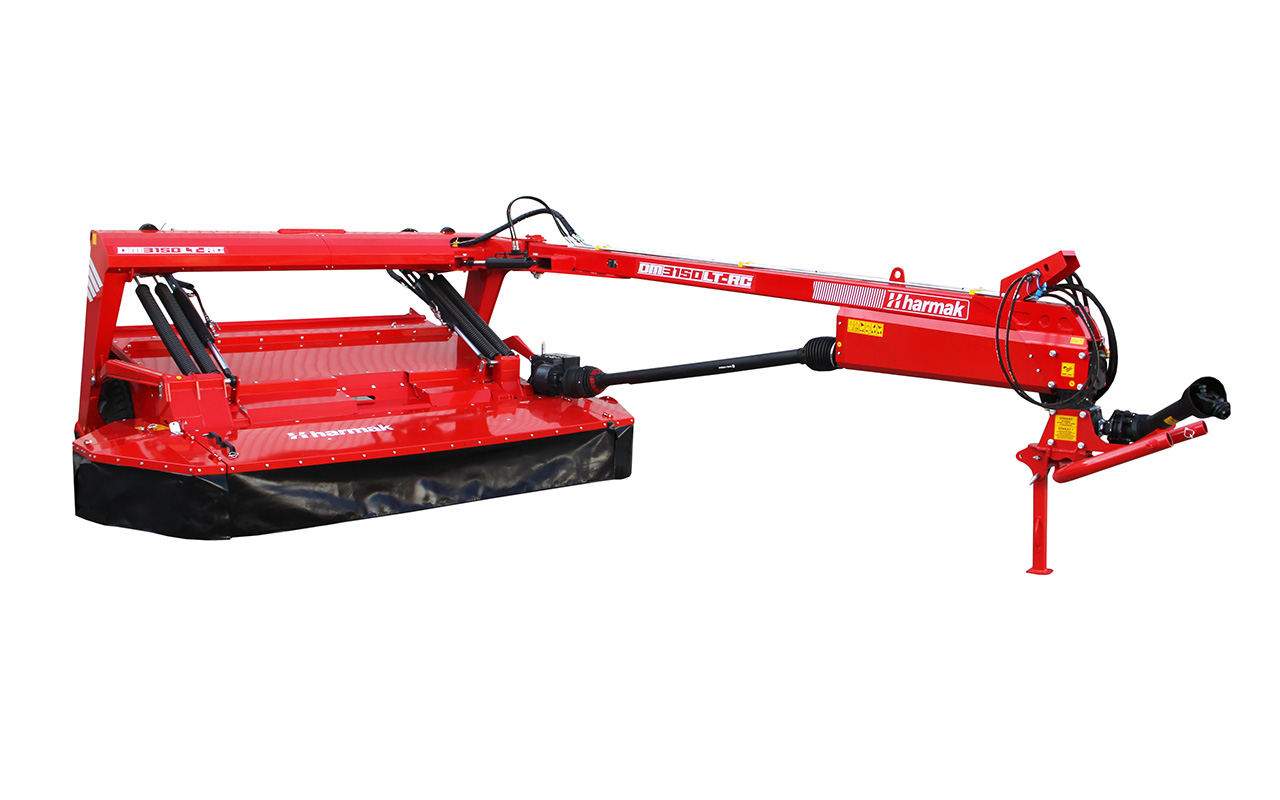

Left Trailed Conditioner Disc Mower
Photo Gallery
Technical Specifications
WEIGHT 2264 kg
WIDTH 3,7 m
HEIGHT 2 m
LENGTH 6,3 m
WORKING WIDTH 3,15 m
POWER 80 hp
PTO SPEED 540 rpm
NUMBER OF DISC 8
NUMBER OF KNIFES 16
MOWING HEIGHT 2-8 cm
CONDITIONER TYPE Zik Zak Type
TIRE SIZE 12.5/80-15.3
Featured Properties

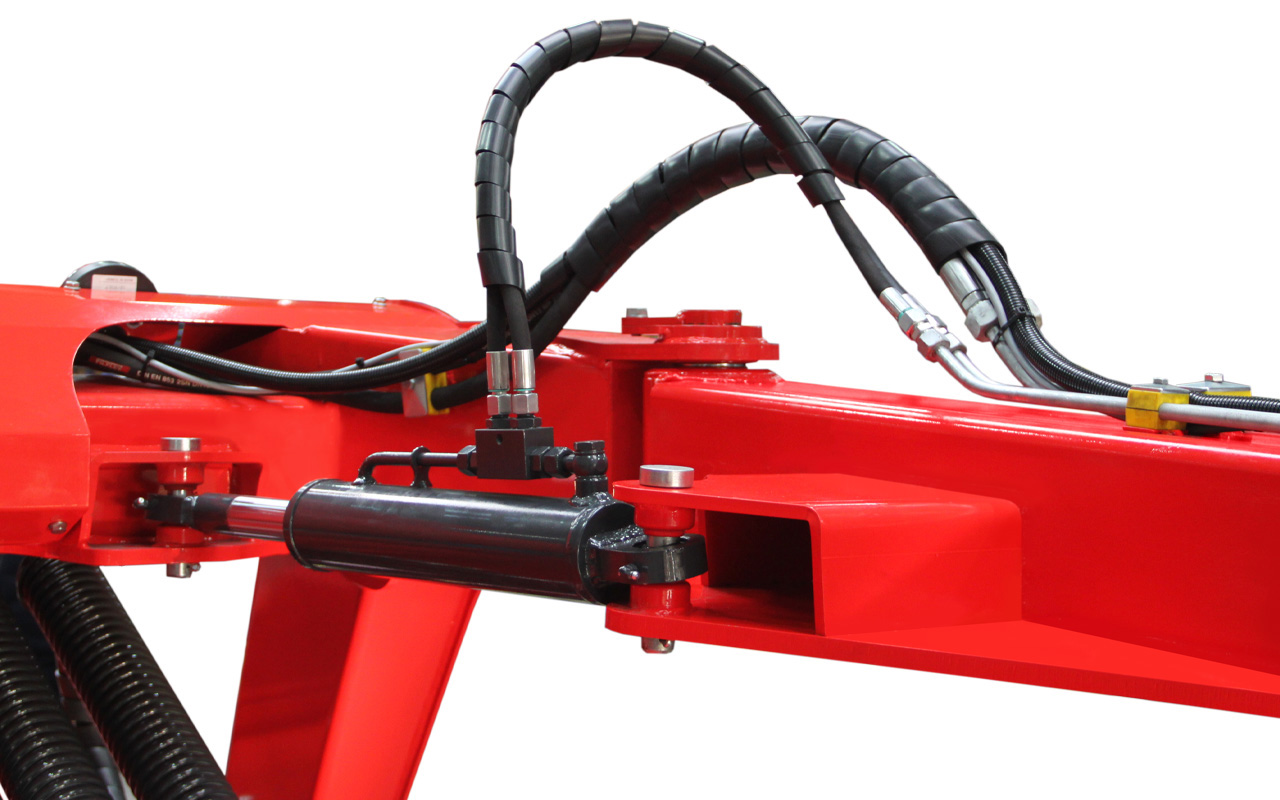

LEFT-SIDE TELESCOPIC SYSTEM
This system allows the machine to be attached to the tractor’s left side. The design enhances maneuverability, particularly in wide fields and during turns, thereby increasing work efficiency.

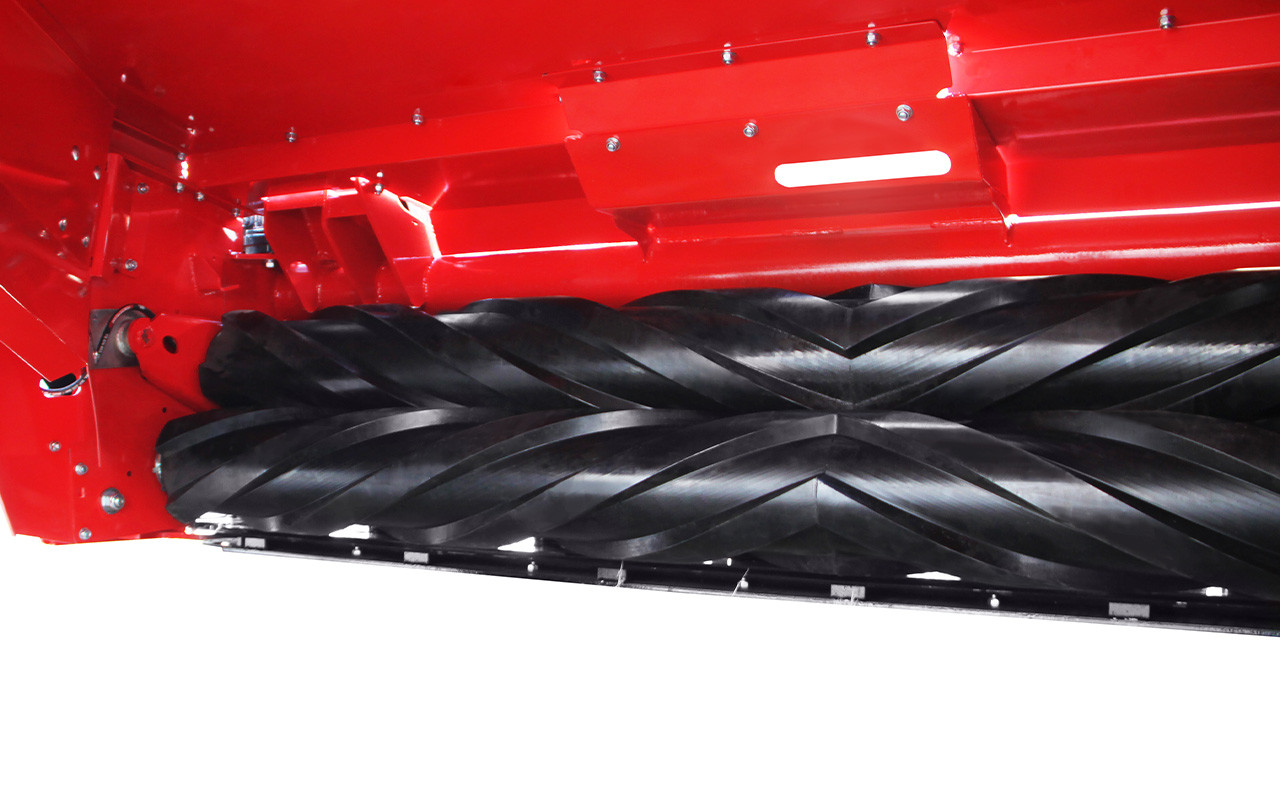

CONDITIONER
Zigzag patterned rubber roller is consisted in conditioner system.These rollers provide mown grass and leafs to dry simultaneously by creating a middle notch effect.It assures excellent conditioning because of the special gearbox system is bonded on the two rollers in conditioner.

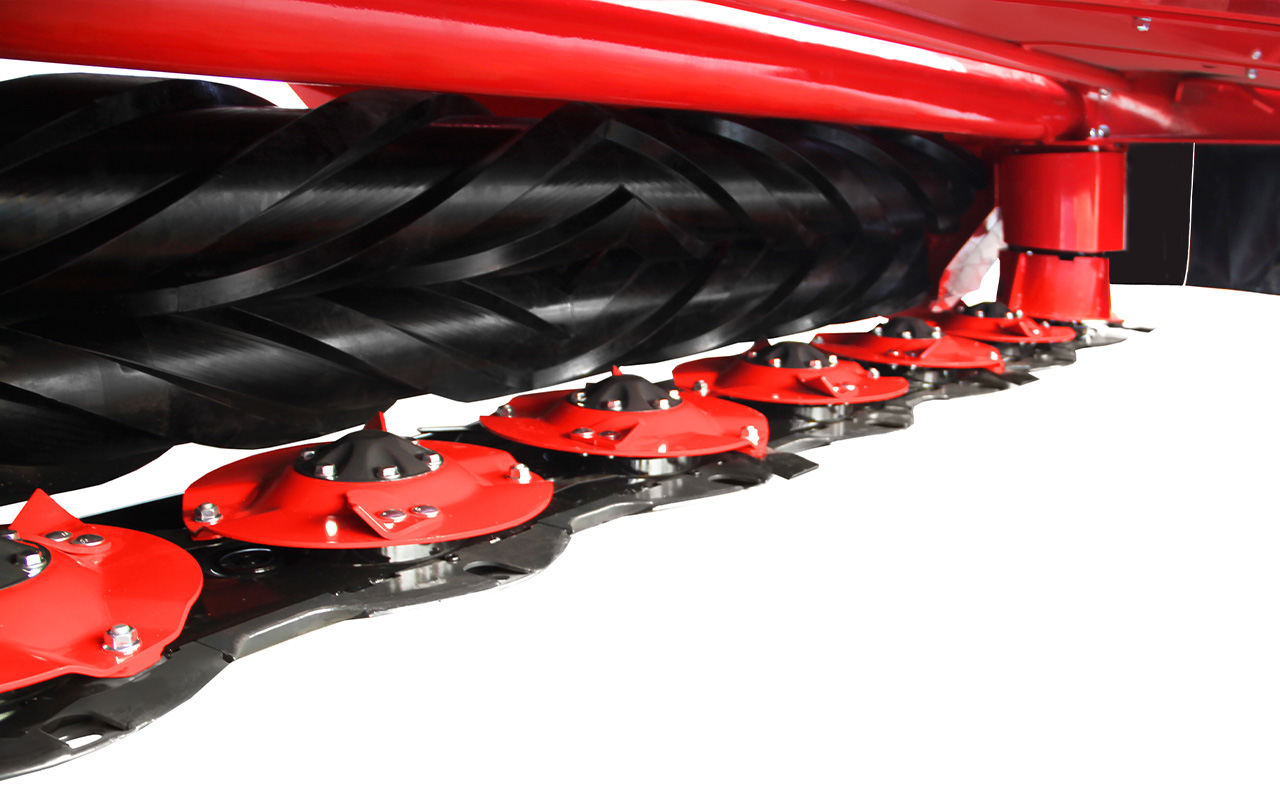

CUTTING DISCS
The knifes which are situated on the discs in the disc mowing system provide chopping the corp from the optimal height.Crop density does not effect the mowingguality and smoothness.

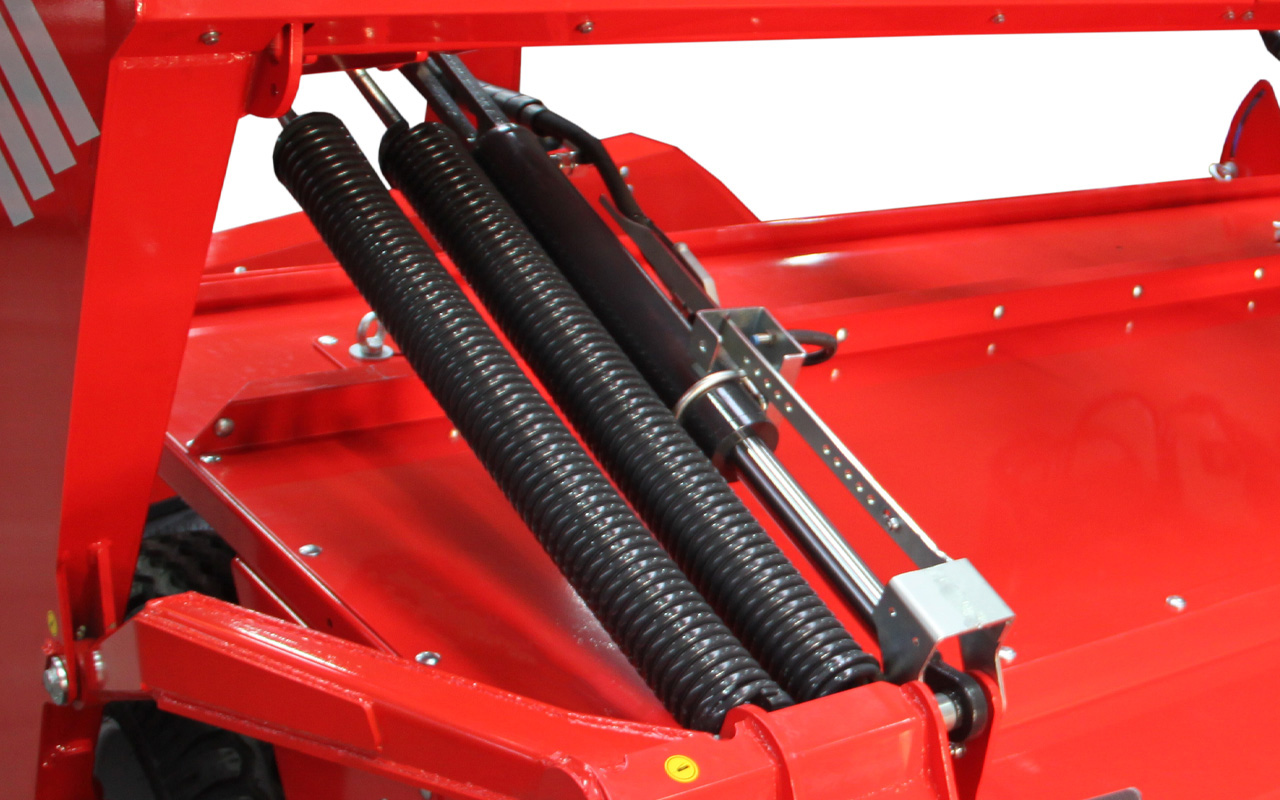

ADJUSTABLE TABLE FOR UNEVEN TERRAIN
The machine’s adjustable table system ensures a smooth cut, even on uneven terrain. This hydraulically controlled system maintains the machine’s ground conformity during headland turns and in rough areas, allowing for a uniform cut of the grass.
