Disc Mowers

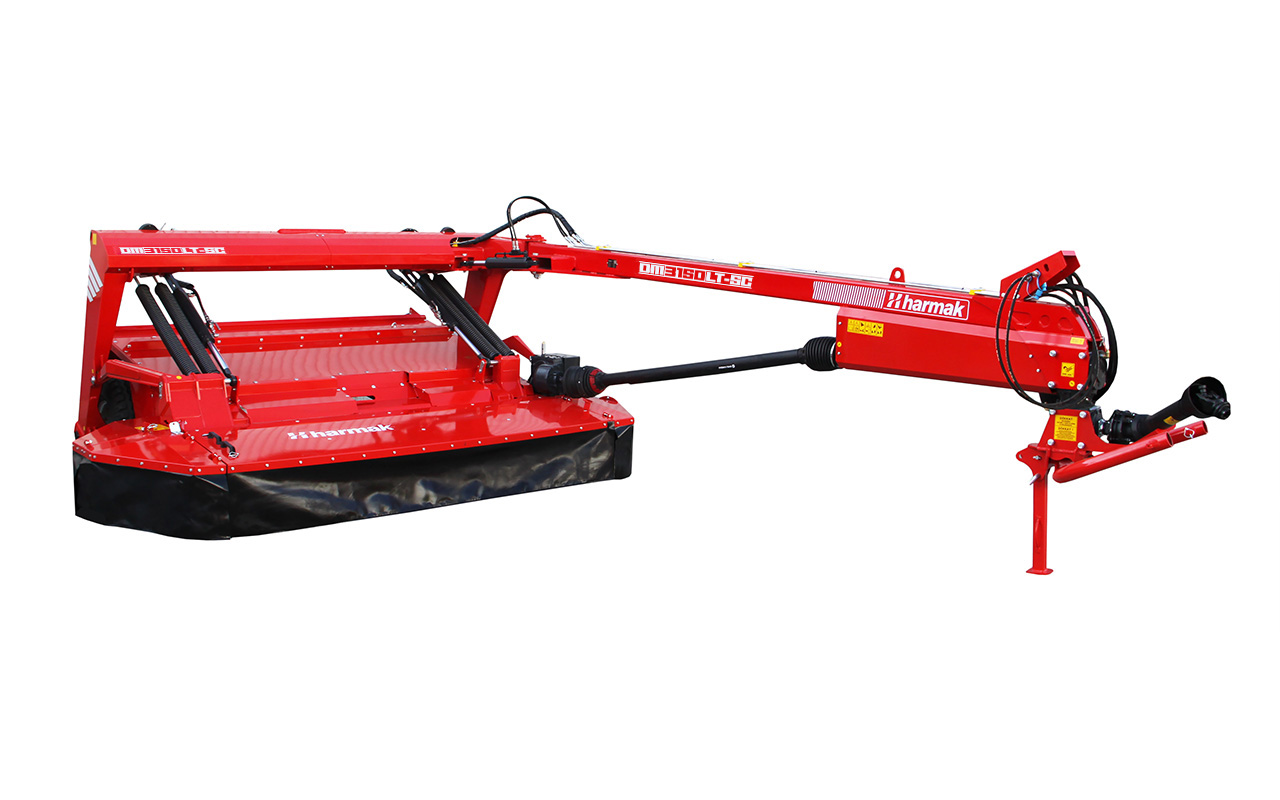

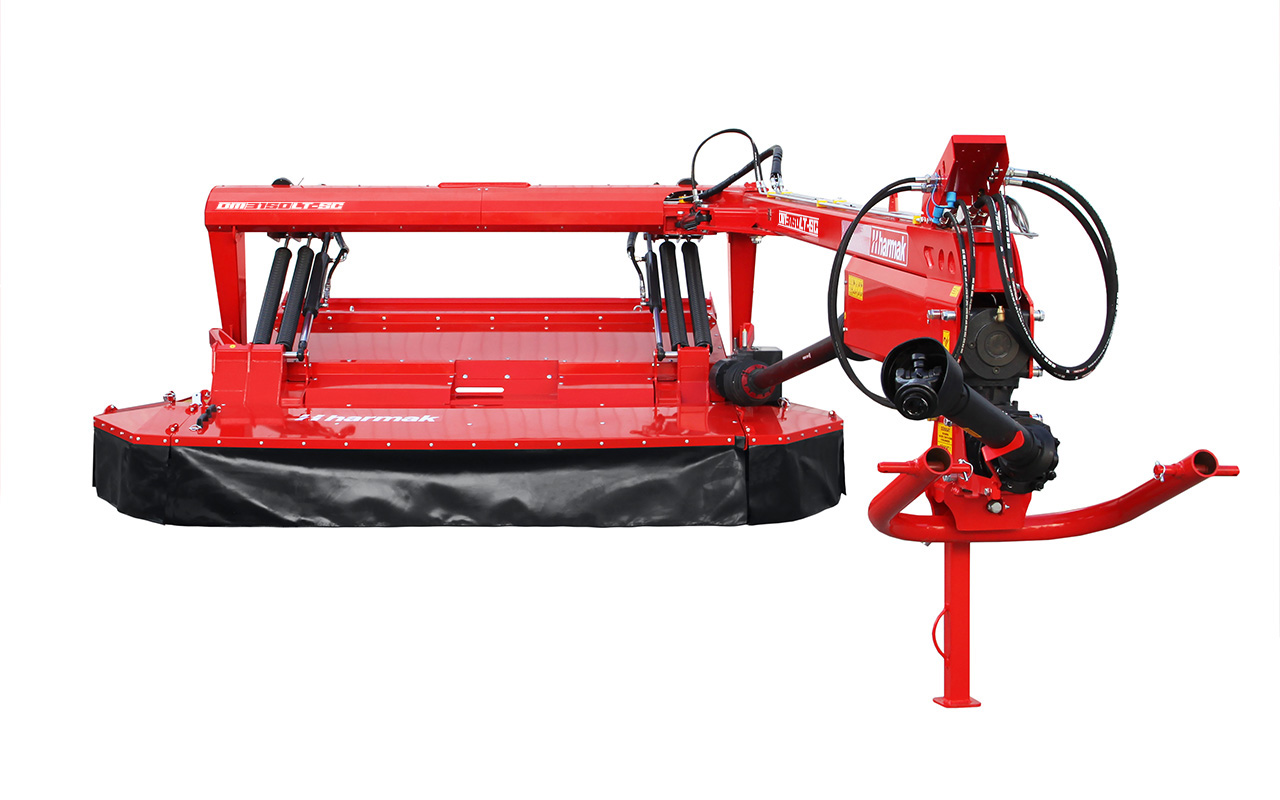

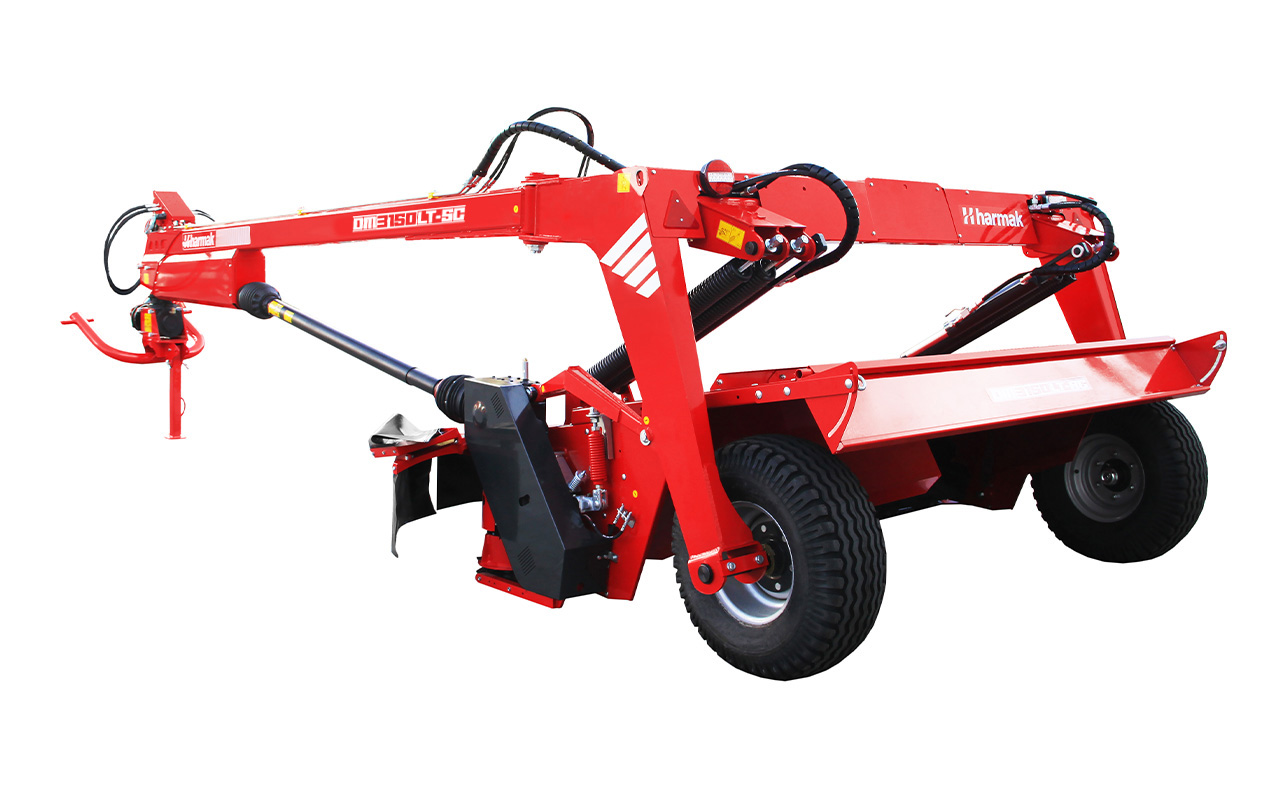

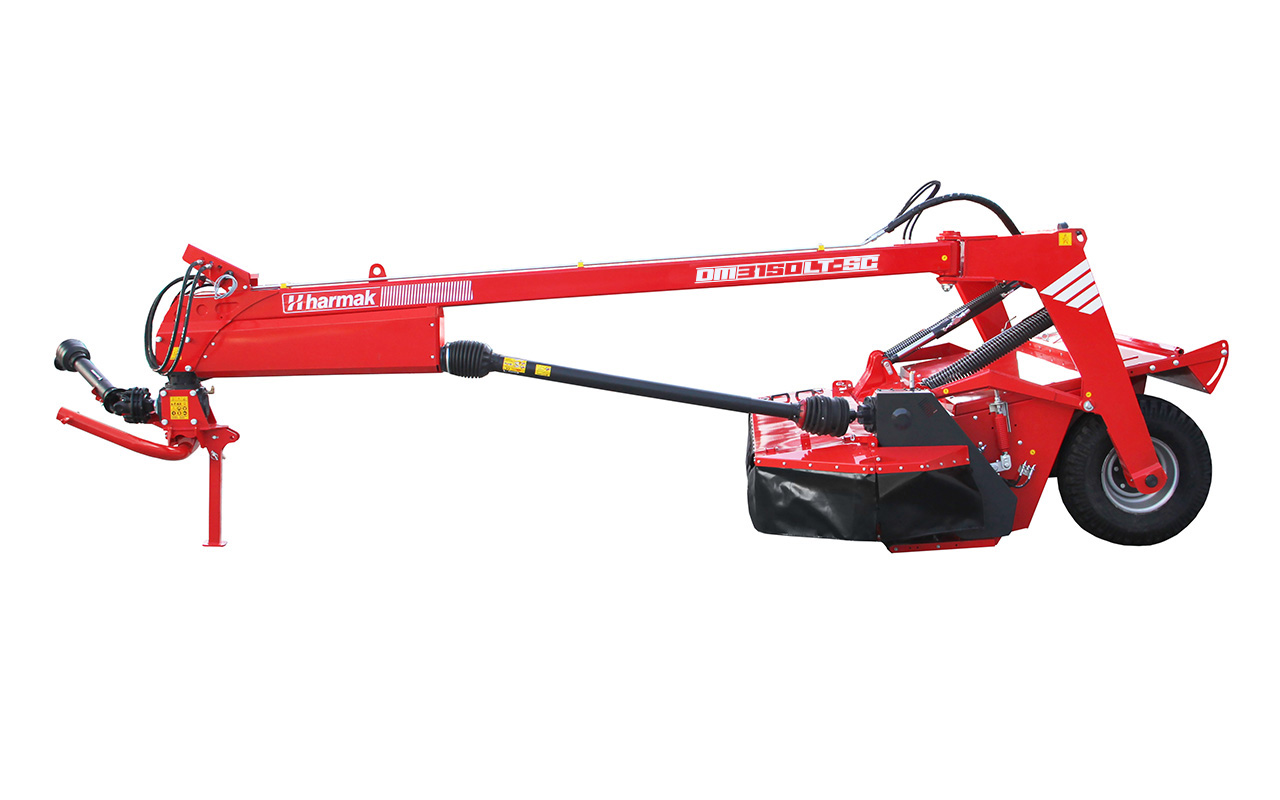

Left Trailed Beater Disc Mower
Photo Gallery
Technical Specifications
WEIGHT 2174 kg
WIDTH 3,7 m
HEIGHT 2 m
LENGTH 6,3 m
WORKING WIDTH 3,15 m
POWER 80 hp
PTO SPEED 540 rpm
NUMBER OF DISC 8
NUMBER OF KNIFES 16
MOWING HEIGHT 2-8 cm
CONDITIONER TYPE Beater System
TIRE SIZE 12.5/80-15.3
Featured Properties

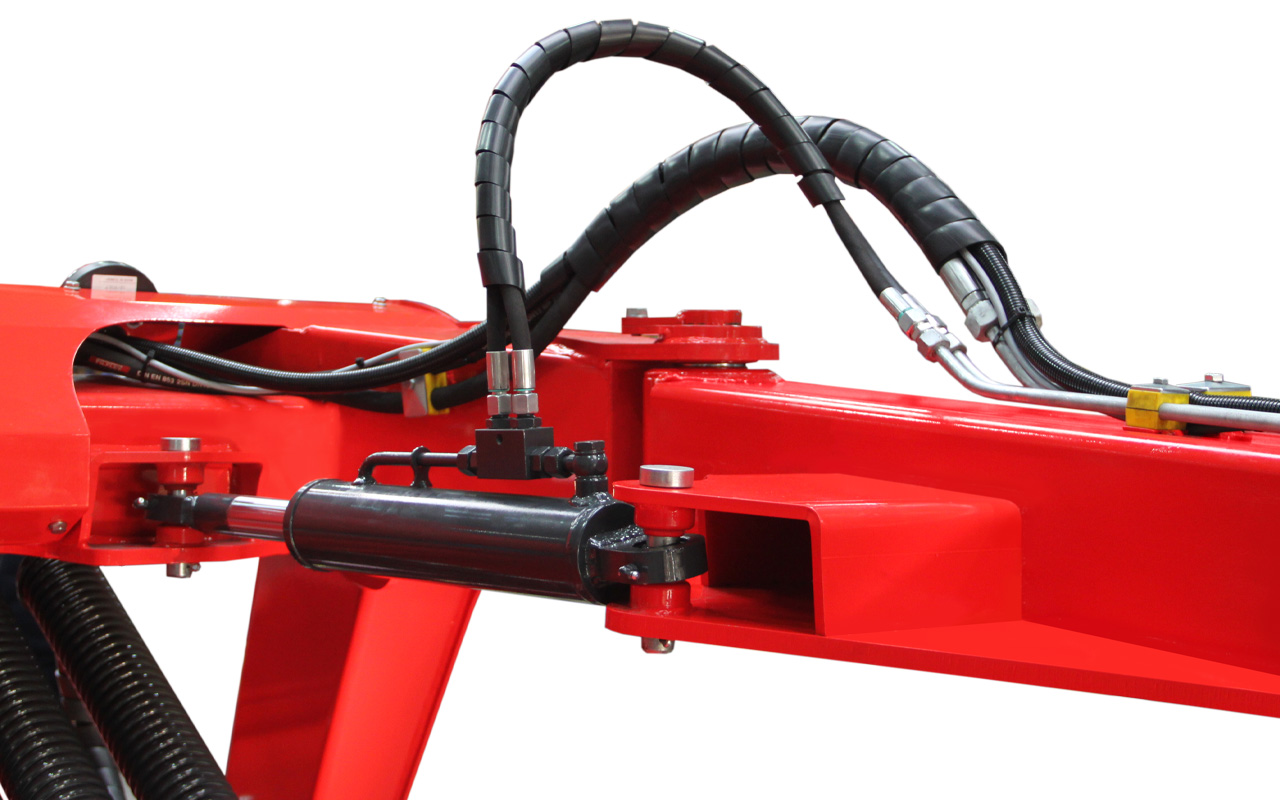

LEFT-SIDE TELESCOPIC SYSTEM
This system allows the machine to be attached to the tractor’s left side. The design enhances maneuverability, particularly in wide fields and during turns, thereby increasing work efficiency.

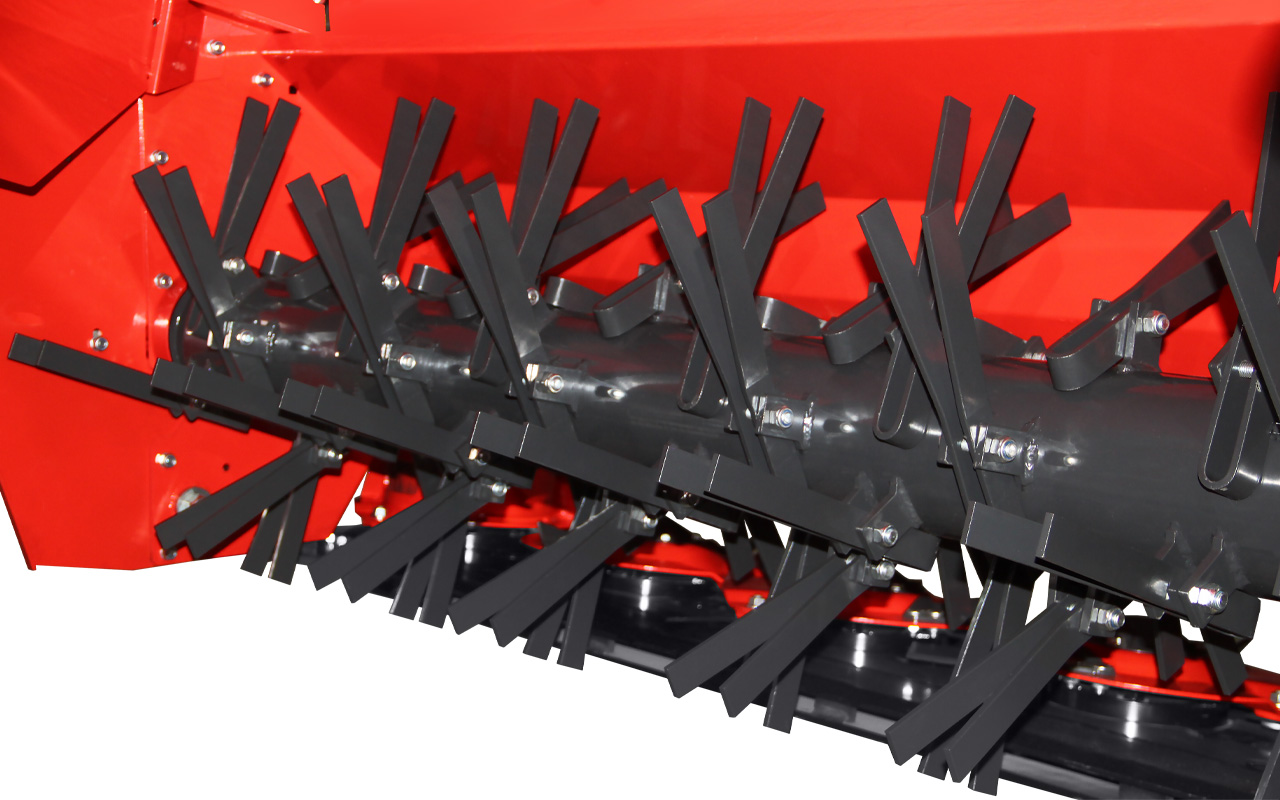

BEATER SYSTEM
The system carefully fluffs the mown grass, exposing both sides to ensure rapid drying. The raking elements gently aerate the grass, helping to preserve its nutritional value while offering high efficiency in operation.

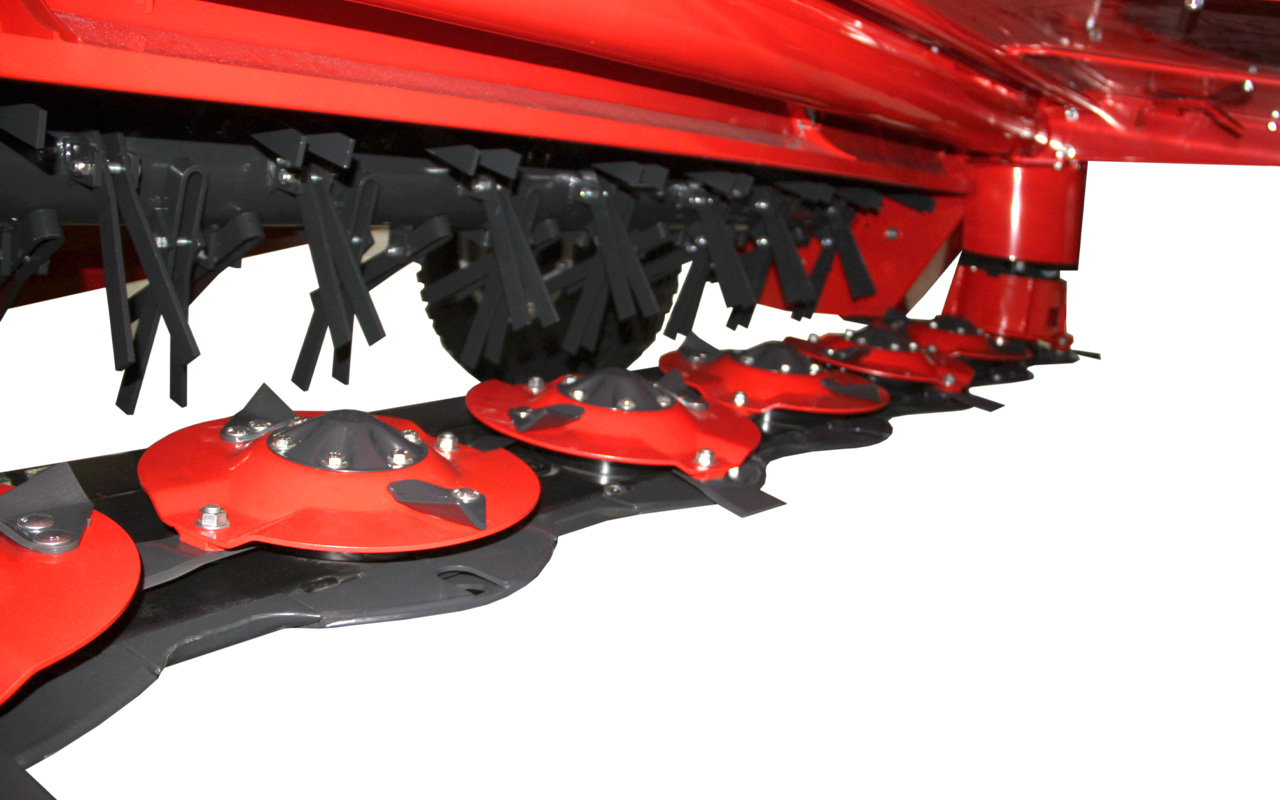

CUTTING DISCS
The knifes which are situated on the discs in the disc mowing system provide chopping the corp from the optimal height.Crop density does not effect the mowingguality and smoothness.

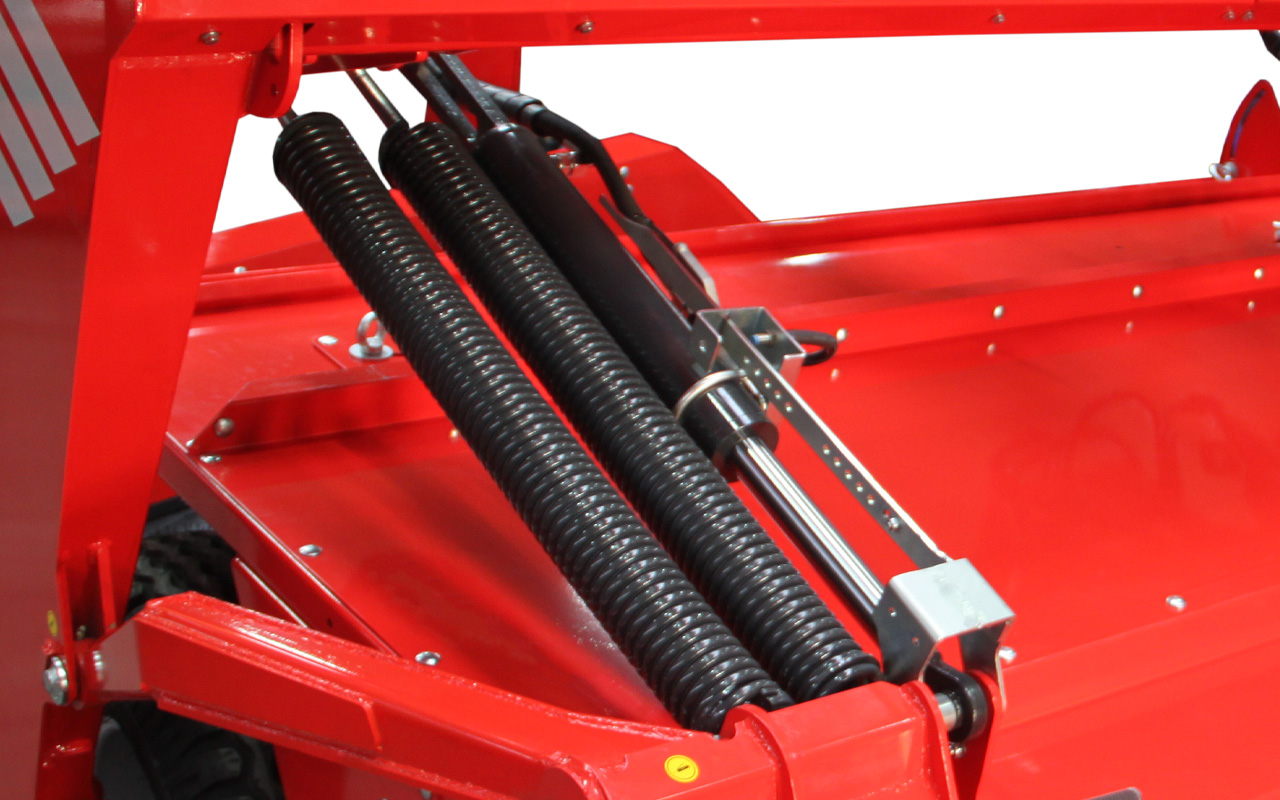

ADJUSTABLE TABLE FOR UNEVEN TERRAIN
The machine’s adjustable table system ensures a smooth cut, even on uneven terrain. This hydraulically controlled system maintains the machine’s ground conformity during headland turns and in rough areas, allowing for a uniform cut of the grass.
