Disc Mowers
Front Mounted Conditioner Disc Mower
Photo Gallery
Technical Specifications
WEIGHT 1440 Kg
WIDTH 3,58 m
WORKING HEIGHT 1.7 m
LENGTH 1,84 m
WORKING WIDTH 3.06 m
TRANSPORT WIDHT 2,97 m
TRANSPORT HEIGHT 1,2 m
POWER 60-70 hp
PTO SPEED 1000 rpm
NUMBER OF DISC 7
NUMBER OF KNIFES 14
MOWING HEIGHT 3-8 cm
CONDITIONER TYPE Zik Zak Desenli Kauçuk
Featured Properties

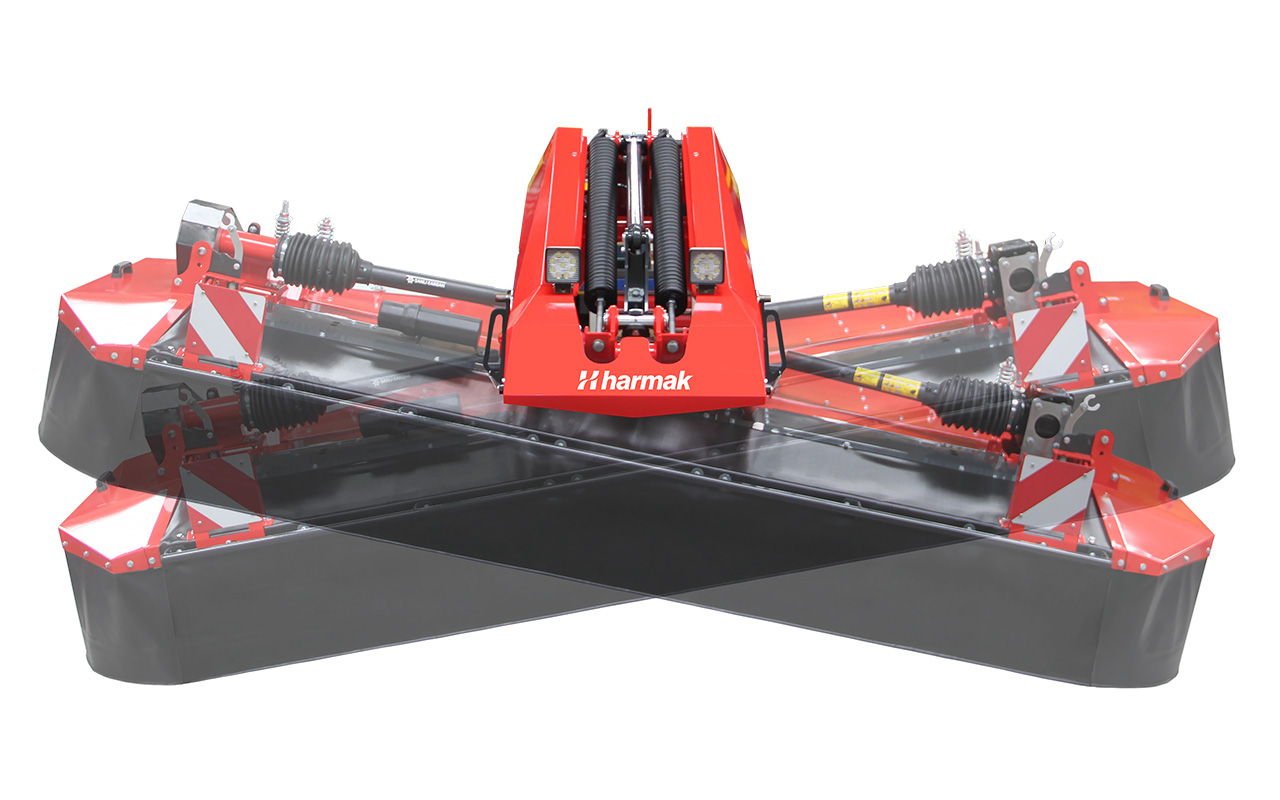

SUSPENSION SYSTEM
The mowing unit independently follows ground contours thanks to its central pivot and free oscillation. Cutting height is consistently maintained. It ensures clean and uninterrupted mowing even on uneven terrain by maintaining continuous ground contact.

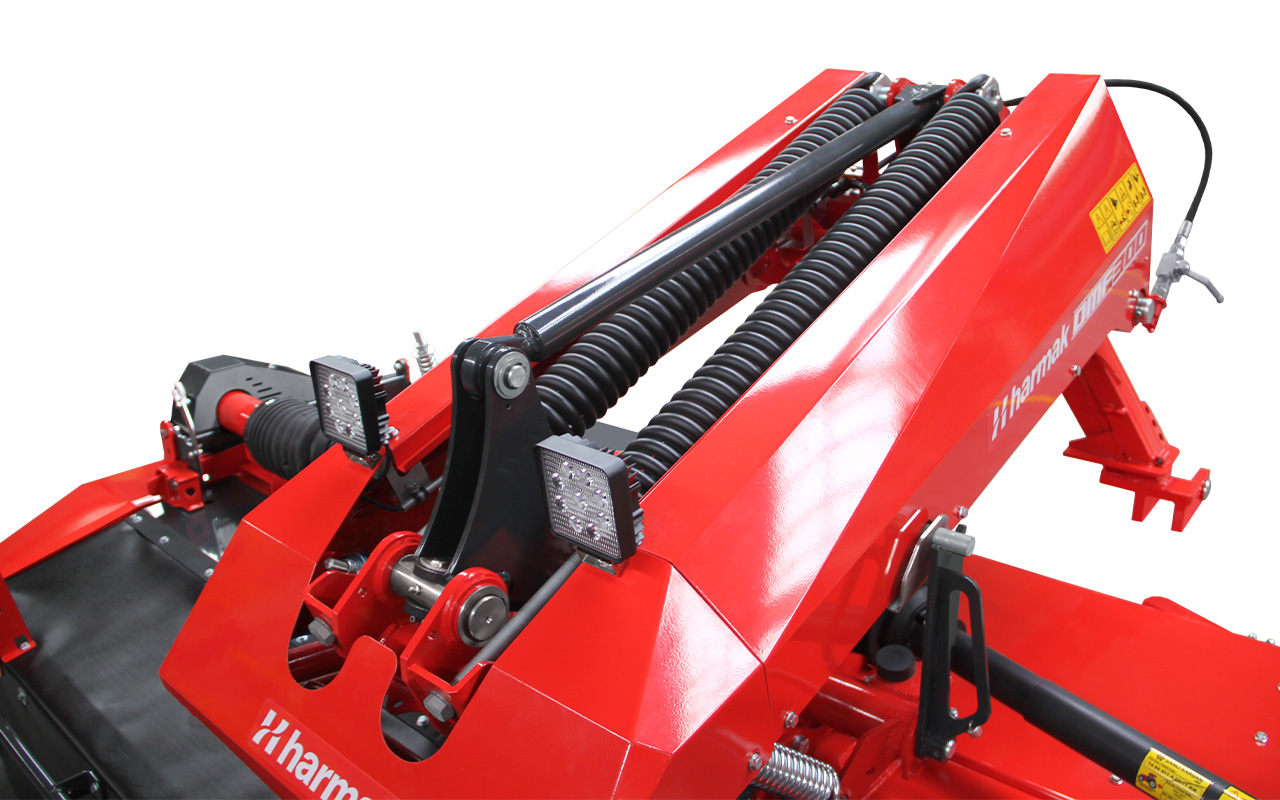

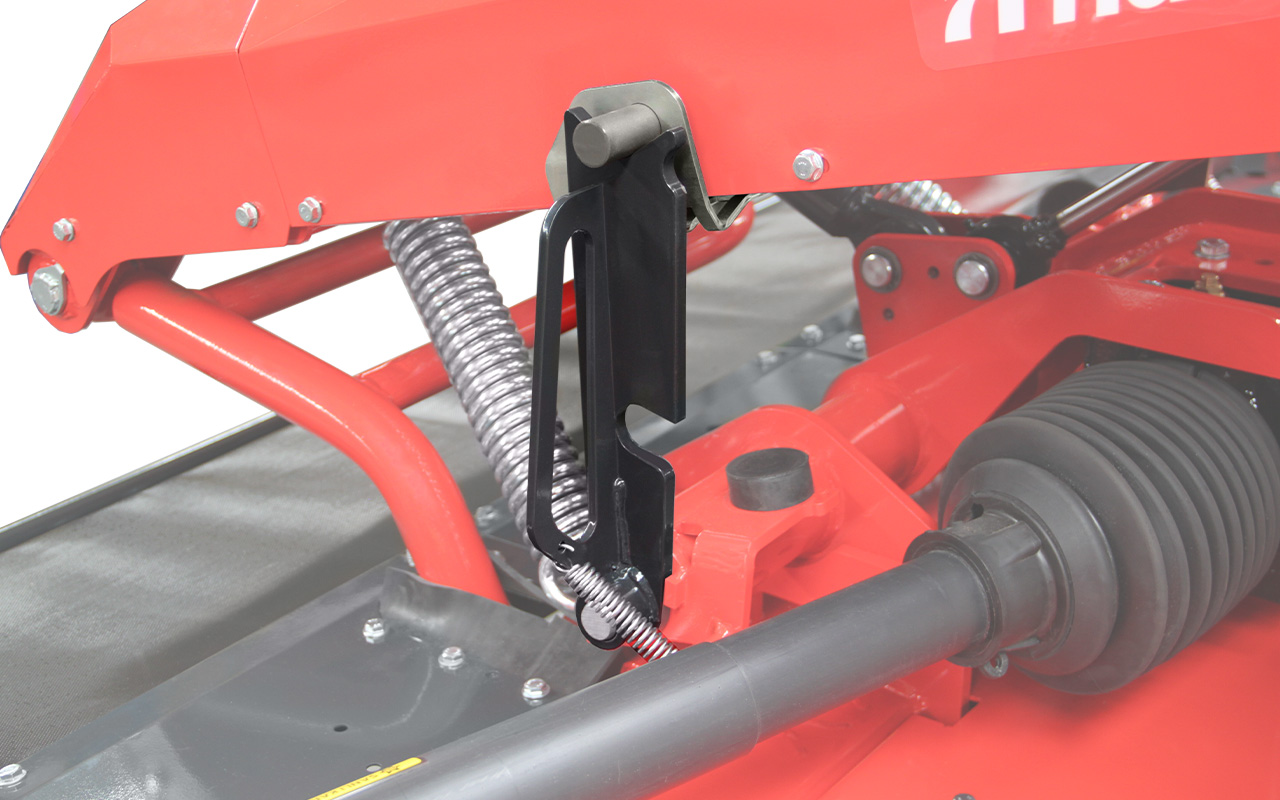

SAFETY SYSTEM
Equipped with a spring-loaded mechanism. In case of contact with foreign objects, the unit moves backward and upward to protect the drive system. This extends machine life and reduces maintenance requirements against sudden impacts.
HYDRAULIC FOLDING SYSTEM
Transition between working and transport positions is achieved via double-acting hydraulic cylinders. The synchronized structure ensures safe folding. It provides fast and practical operation, saving time for the operator.
LOW POWER REQUIREMENT
Power losses are minimized with low-friction bearings and an optimized gear structure. Power is transmitted directly to the cutting system. It offers economical and efficient operation with lower fuel consumption.

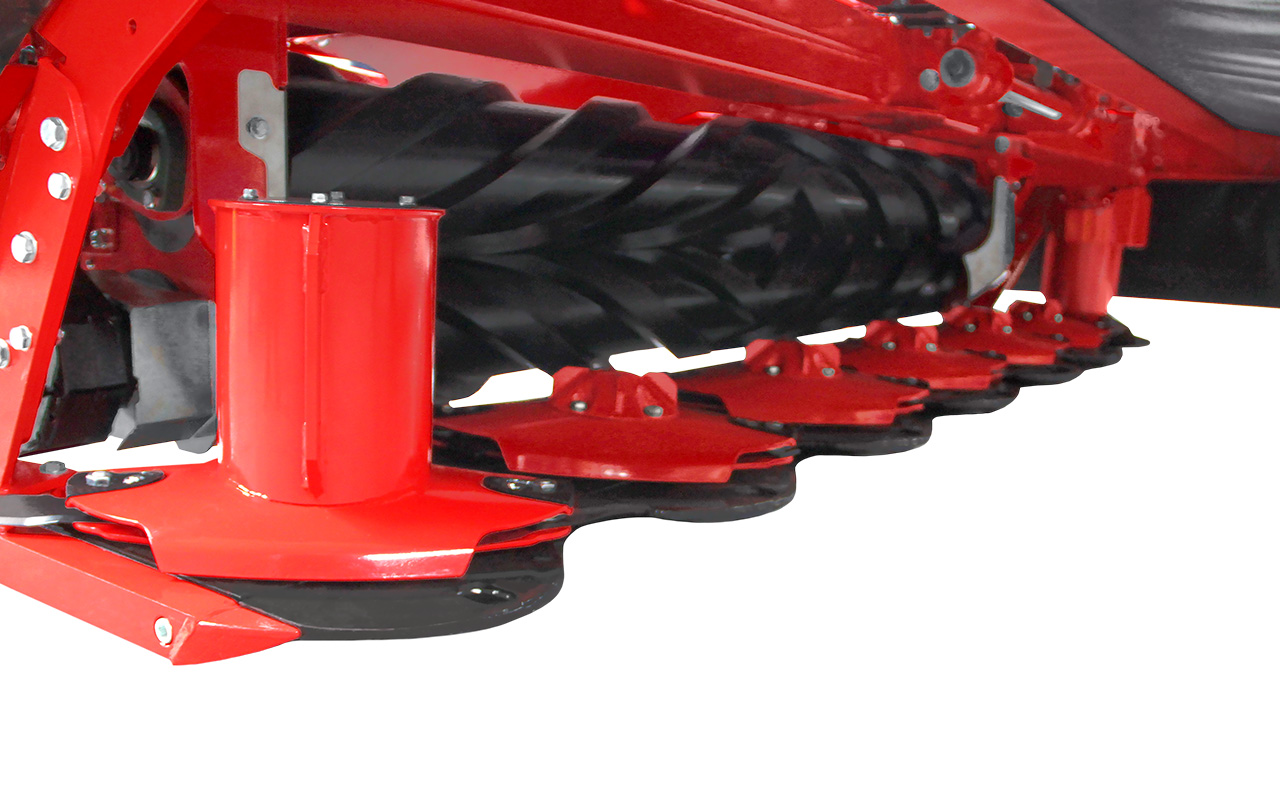

HIGH-QUALITY CUTTING PERFORMANCE
A high-speed disc and blade system ensures uniform cutting. Crop flow is directed smoothly, preventing accumulation. It delivers a clean field appearance and supports faster drying.
OPTIMUM WEIGHT DISTRIBUTION
The chassis and suspension points ensure balanced weight distribution. It provides more stable operation and reduced wear. Load balance on the tractor is improved, increasing driving comfort.
